Arduino i rejestr 74HC595


Sylba

Pomocna odpowiedź

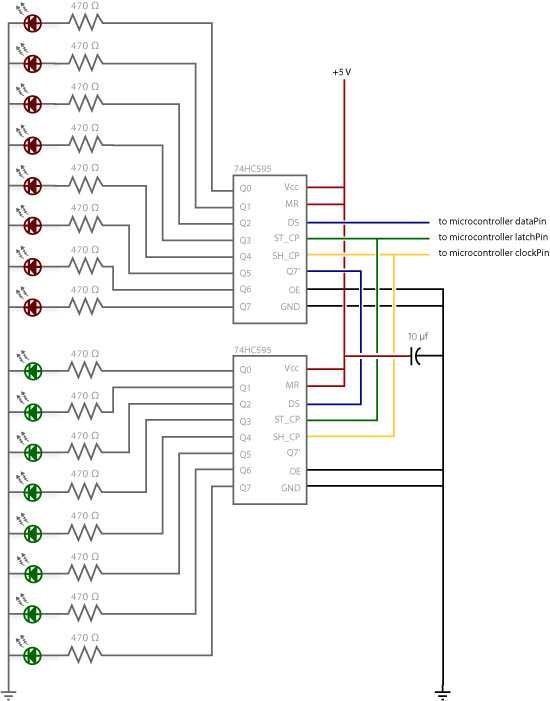

Złożyłem taki prostu układ połączonych kaskadowo dwóch rejestrów 74HC595.

Wgrałem do Arduino prościutki program,

//**************************************************************//
//  Name    : shiftOutCode, Predefined Dual Array Style         //
//  Author  : Carlyn Maw, Tom Igoe                              //
//  Date    : 25 Oct, 2006                                      //
//  Version : 1.0                                               //
//  Notes   : Code for using a 74HC595 Shift Register           //
//          : to count from 0 to 255                            //
//****************************************************************
//Pin connected to ST_CP of 74HC595
int latchPin = A1;
//Pin connected to SH_CP of 74HC595
int clockPin = A0;
////Pin connected to DS of 74HC595
int dataPin = A2;
//Pin connected to MR of 74HC595 master rest input
int clearPin = A3;


void setup() {
  //set pins to output because they are addressed in the main loop
  pinMode(latchPin, OUTPUT);
  pinMode(clockPin, OUTPUT);
  pinMode(dataPin, OUTPUT);
  pinMode(clearPin, OUTPUT);

  digitalWrite(clearPin, LOW);
  digitalWrite(clearPin, HIGH);

  Serial.begin(9600);

}
void loop()
{
  // count from 0 to 255 and display the number
  // on the LEDs
  for (int numberToDisplay = 0; numberToDisplay < 256; numberToDisplay++)
  {
    // take the latchPin low so
    // the LEDs don't change while you're sending in bits:
    digitalWrite(latchPin, LOW);
    // shift out the bits:
    shiftOut(dataPin, clockPin, MSBFIRST, numberToDisplay);
    //take the latch pin high so the LEDs will light up:
    digitalWrite(latchPin, HIGH);
    // pause before next value:
    delay(500);
  }
}

w którym diody LED są włączane by pokazywać wartość bitową zmiennej wprowadzonej do rejestru i ku mojemu zdziwieniu (lub niewiedzy) stwierdziłem, że układ działa nawet wówczas gdy odłączę od Arduino Vcc i GND.

Z czego to wynika?
