Arduino jako nietypowy kontroler


Pomocna odpowiedź

Witam mam problem z projektem przepustnicy do gier.

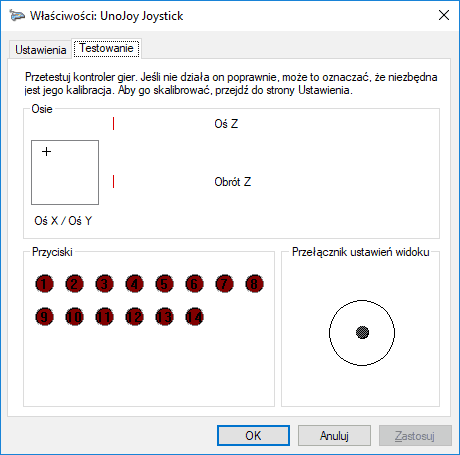

Pod podpięciu Arduino do komputera jako kontroler wykrywa tyko oś Z i obrót osi Z.

Kontroler ma działać jako Throttle.

Prosił bym o pomoc.

Kod programu.

#include "UnoJoy.h"

void setup(){

void loop(){
  // Always be getting fresh data
  dataForController_t controllerData = getControllerData();

void setupPins(void){
  // Set all the digital pins as inputs
  // with the pull-up enabled, except for the
  // two serial line pins
  for (int i = 2; i <= 12; i++){
    pinMode(i, INPUT);
    digitalWrite(i, HIGH);
  pinMode(A4, INPUT);
  digitalWrite(A4, HIGH);
  pinMode(A5, INPUT);
  digitalWrite(A5, HIGH);

dataForController_t getControllerData(void){
  // Set up a place for our controller data
  //  Use the getBlankDataForController() function, since
  //  just declaring a fresh dataForController_t tends
  //  to get you one filled with junk from other, random
  //  values that were in those memory locations before
  dataForController_t controllerData = getBlankDataForController();
  // Since our buttons are all held high and
  //  pulled low when pressed, we use the "!"
  //  operator to invert the readings from the pins
  controllerData.triangleOn = !digitalRead(2);
  controllerData.circleOn = !digitalRead(3);
  controllerData.squareOn = !digitalRead(4);
  controllerData.crossOn = !digitalRead(5);
  controllerData.dpadUpOn = !digitalRead(6);
  controllerData.dpadDownOn = !digitalRead(7);
  controllerData.dpadLeftOn = !digitalRead(8);
  controllerData.dpadRightOn = !digitalRead(9);
  controllerData.l1On = !digitalRead(10);
  controllerData.r1On = !digitalRead(11);
  controllerData.selectOn = !digitalRead(12);
  controllerData.startOn = !digitalRead(A4);
  controllerData.homeOn = !digitalRead(A5);
  // Set the analog sticks
  //  Since analogRead(pin) returns a 10 bit value,
  //  we need to perform a bit shift operation to
  //  lose the 2 least significant bits and get an
  //  8 bit number that we can use
  controllerData.leftStickX = analogRead(A0) >> 2;
  controllerData.leftStickY = analogRead(A1) >> 2;
  controllerData.rightStickX = analogRead(A2) >> 2;
  controllerData.rightStickY = analogRead(A3) >> 2;
  controllerData.throttle = analogRead(A5)>>2;
  // And return the data!
  return controllerData;

oraz kod biblioteki

/*  UnoJoy.h
 *   Alan Chatham - 2012
 *    RMIT Exertion Games Lab
 *  This library gives you a standard way to create Arduino code that talks
 *   to the UnoJoy firmware in order to make native USB game controllers.
 *  Functions:
 *   setupUnoJoy()
 *   getBlankDataForController()
 *   setControllerData(dataForController_t dataToSet)
 *   NOTE: You cannot use pins 0 or 1 if you use this code - they are used by the serial communication.
 *         Also, the setupUnoJoy() function starts the serial port at 38400, so if you're using
 *         the serial port to debug and it's not working, this may be your problem.
 *   === How to use this library ===
 *   If you want, you can move this file into your Arduino/Libraries folder, then use it like a normal library.
 *   However, since you'll need to refer to the details of the dataForController_t struct in this file, I would suggest you use
 *    it by adding it to your Arduino sketch manually (in Arduino, go to Sketch->Add file...)
 *  To use this library to make a controller, you'll need to do 3 things:
 *   Call setupUnoJoy(); in the setup() block
 *   Create and populate a dataForController_t type variable and fill it with your data
 *         The getBlankDataForController() function is good for that.
 *   Call setControllerData(yourData); where yourData is the variable from above,
 *         somewhere in your loop(), once you're ready to push your controller data to the system.
 *         If you forget to call sendControllerData in your loop, your controller won't ever do anything
 *  You can then debug the controller with the included Processing sketch, UnoJoyProcessingVisualizer
 *  To turn it into an actual USB video game controller, you'll reflash the
 *   Arduino's communication's chip using the instructions found in the 'Firmware' folder,
 *   then unplug and re-plug in the Arduino.
 *  Details about the dataForController_t type are below, but in order to create and use it,
 *   you'll declare it like:
 *      dataForController_t sexyControllerData;
 *   and then control button presses and analog stick movement with statements like:
 *      sexyControllerData.triangleOn = 1;   // Marks the triangle button as pressed
 *      sexyControllerData.squareOn = 0;     // Marks the square button as unpressed
 *      sexyControllerData.leftStickX = 90;  // Analog stick values can range from 0 - 255

#ifndef UNOJOY_H
#define UNOJOY_H
    #include <stdint.h>
    #include <util/atomic.h>
    #include <Arduino.h>

    // This struct is the core of the library.
    //  You'll create an instance of this and manipulate it,
    //  then use the setControllerData function to send that data out.
    //  Don't change this - the order of the fields is important for
    //  the communication between the Arduino and it's communications chip.
	typedef struct dataForController_t
		uint8_t triangleOn : 1;  // Each of these member variables
		uint8_t circleOn : 1;    //  control if a button is off or on
		uint8_t squareOn : 1;    // For the buttons,
		uint8_t crossOn : 1;     //  0 is off
		uint8_t l1On : 1;        //  1 is on
		uint8_t l2On : 1;
		uint8_t l3On : 1;        // The : 1 here just tells the compiler
		uint8_t r1On : 1;        //  to only have 1 bit for each variable.
                                 //  This saves a lot of space for our type!
		uint8_t r2On : 1;
		uint8_t r3On : 1;
		uint8_t selectOn : 1;
		uint8_t startOn : 1;
		uint8_t homeOn : 1;
		uint8_t dpadLeftOn : 1;
		uint8_t dpadUpOn : 1;
		uint8_t dpadRightOn : 1;

		uint8_t dpadDownOn : 1;
        uint8_t padding : 7;     // We end with 7 bytes of padding to make sure we get our data aligned in bytes
		uint8_t leftStickX : 8;  // Each of the analog stick values can range from 0 to 255
		uint8_t leftStickY : 8;  //  0 is fully left or up
		uint8_t rightStickX : 8; //  255 is fully right or down
		uint8_t rightStickY : 8; //  128 is centered.
        uint8_t    throttle :8;                // Important - analogRead(pin) returns a 10 bit value, so if you're getting strange
                                 //  results from analogRead, you may need to do (analogRead(pin) >> 2) to get good data
	} dataForController_t;
    // Call setupUnoJoy in the setup block of your program.
    //  It sets up the hardware UnoJoy needs to work properly
    void setupUnoJoy(void);
    // You can also call the set
    void setupUnoJoy(int);
    // This sets the controller to reflect the button and
    // joystick positions you input (as a dataForController_t).
    // The controller will just send a zeroed (joysticks centered)
    // signal until you tell it otherwise with this function.
    void setControllerData(dataForController_t);
    // This function gives you a quick way to get a fresh
    //  dataForController_t with:
    //    No buttons pressed
    //    Joysticks centered
    // Very useful for starting each loop with a blank controller, for instance.
    // It returns a dataForController_t, so you want to call it like:
    //    myControllerData = getBlankDataForController();
    dataForController_t getBlankDataForController(void);
//----- End of the interface code you should be using -----//
//----- Below here is the actual implementation of
  // This dataForController_t is used to store
  //  the controller data that you want to send
  //  out to the controller.  You shouldn't mess
  //  with this directly - call setControllerData instead
  dataForController_t controllerDataBuffer;

  // This updates the data that the controller is sending out.
  //  The system actually works as following:
  //  The UnoJoy firmware on the ATmega8u2 regularly polls the
  //  Arduino chip for individual bytes of a dataForController_t.
  void setControllerData(dataForController_t controllerData){
    // Probably unecessary, but this guarantees that the data
    //  gets copied to our buffer all at once.
      controllerDataBuffer = controllerData;
  // serialCheckInterval governs how many ms between
  //  checks to the serial port for data.
  //  It shouldn't go above 20 or so, otherwise you might
  //  get unreliable data transmission to the UnoJoy firmware,
  //  since after it sends a request, it waits 25 ms for a response.
  //  If you really need to make it bigger than that, you'll have to
  //  adjust that timeout in the UnoJoy ATmega8u2 firmware code as well.
  volatile int serialCheckInterval = 1;
  // This is an internal counter variable to count ms between
  //  serial check times
  int serialCheckCounter = 0;
  // This is the setup function - it sets up the serial communication
  //  and the timer interrupt for actually sending the data back and forth.
  void setupUnoJoy(void){
    // First, let's zero out our controller data buffer (center the sticks)
    controllerDataBuffer = getBlankDataForController();
    // Start the serial port at the specific, low-error rate UnoJoy uses.
    //  If you want to change the rate, you'll have to change it in the
    //  firmware for the ATmega8u2 as well.  250,000 is actually the best rate,
    //  but it's not supported on Macs, breaking the processing debugger.
    // Now set up the Timer 0 compare register A
    //  so that Timer0 (used for millis() and such)
    //  also fires an interrupt when it's equal to
    //  128, not just on overflow.
    // This will fire our timer interrupt almost
    //  every 1 ms (1024 us to be exact).
    OCR0A = 128;
    TIMSK0 |= (1 << OCIE0A);
  // If you really need to change the serial polling
  //  interval, use this function to initialize UnoJoy.
  //  interval is the polling frequency, in ms.
  void setupUnoJoy(int interval){
    serialCheckInterval = interval;
  // This interrupt gets called approximately once per ms.
  //  It counts how many ms between serial port polls,
  //  and if it's been long enough, polls the serial
  //  port to see if the UnoJoy firmware requested data.
  //  If it did, it transmits the appropriate data back.
    if (serialCheckCounter >= serialCheckInterval){
      serialCheckCounter = 0;
      // If there is incoming data stored in the Arduino serial buffer
      while (Serial.available() > 0) {
        pinMode(13, OUTPUT);
        //digitalWrite(13, HIGH);
        // Get incoming byte from the ATmega8u2
        byte inByte =;
        // That number tells us which byte of the dataForController_t struct
        //  to send out.
        //digitalWrite(13, LOW);
  // Returns a zeroed out (joysticks centered)
  //  dataForController_t variable
  dataForController_t getBlankDataForController(void){
    // Create a dataForController_t
    dataForController_t controllerData;
    // Make the buttons zero
    controllerData.triangleOn = 0;
    controllerData.circleOn = 0;
    controllerData.squareOn = 0;
    controllerData.crossOn = 0;
    controllerData.l1On = 0;
    controllerData.l2On = 0;
    controllerData.l3On = 0;
    controllerData.r1On = 0;
    controllerData.r2On = 0;
    controllerData.r3On = 0;
    controllerData.dpadLeftOn = 0;
    controllerData.dpadUpOn = 0;
    controllerData.dpadRightOn = 0;
    controllerData.dpadDownOn = 0;
    controllerData.selectOn = 0;
    controllerData.startOn = 0;
    controllerData.homeOn = 0;
    //Set the sticks to 128 - centered
    controllerData.leftStickX = 128;
    controllerData.leftStickY = 128;
    controllerData.rightStickX = 128;
    controllerData.rightStickY = 128;
    controllerData.throttle = 128;
    // And return the data!
    return controllerData;




Link do komentarza
Share on other sites

Dołącz do dyskusji, napisz odpowiedź!

Jeśli masz już konto to zaloguj się teraz, aby opublikować wiadomość jako Ty. Możesz też napisać teraz i zarejestrować się później.
Uwaga: wgrywanie zdjęć i załączników dostępne jest po zalogowaniu!

Dołącz do dyskusji! Kliknij i zacznij pisać...

×   Wklejony jako tekst z formatowaniem.   Przywróć formatowanie

  Dozwolonych jest tylko 75 emoji.

×   Twój link będzie automatycznie osadzony.   Wyświetlać jako link

×   Twoja poprzednia zawartość została przywrócona.   Wyczyść edytor

×   Nie możesz wkleić zdjęć bezpośrednio. Prześlij lub wstaw obrazy z adresu URL.

  • Utwórz nowe...

Ważne informacje

Ta strona używa ciasteczek (cookies), dzięki którym może działać lepiej. Więcej na ten temat znajdziesz w Polityce Prywatności.
