ESP8266 własne znaki na LCD ST7032i (część II)

[99teki]

kod programu

/*
	ST7032 I2C LCD control sample
	Original source : CustomCharacter.ino (LiquidCrystal Library)
	2013/05/21 tomozh@gmail.com
*/

/*
  LiquidCrystal Library - Custom Characters

 Demonstrates how to add custom characters on an LCD  display.
 The LiquidCrystal library works with all LCD displays that are
 compatible with the  Hitachi HD44780 driver. There are many of
 them out there, and you can usually tell them by the 16-pin interface.

 This sketch prints "I <heart> Arduino!" and a little dancing man
 to the LCD.

  The circuit:
 * LCD RS pin to digital pin 12
 * LCD Enable pin to digital pin 11
 * LCD D4 pin to digital pin 5
 * LCD D5 pin to digital pin 4
 * LCD D6 pin to digital pin 3
 * LCD D7 pin to digital pin 2
 * LCD R/W pin to ground
 * 10K potentiometer:
 * ends to +5V and ground
 * wiper to LCD VO pin (pin 3)
 * 10K poterntiometer on pin A0

 created21 Mar 2011
 by Tom Igoe
 Based on Adafruit's example at
 https://github.com/adafruit/SPI_VFD/blob/master/examples/createChar/createChar.pde

 This example code is in the public domain.
 http://www.arduino.cc/en/Tutorial/LiquidCrystal

 Also useful:
 http://icontexto.com/charactercreator/

 */

// include the library code:
//#include <LiquidCrystal.h>
#include <Wire.h>
#include "ST7032_asukiaaa.h"

// initialize the library with the numbers of the interface pins
//LiquidCrystal lcd(12, 11, 5, 4, 3, 2);
ST7032_asukiaaa lcd;

// make some custom characters:
byte heart[8] = {
  0b00000,
  0b01010,
  0b11111,
  0b11111,
  0b11111,
  0b01110,
  0b00100,
  0b00000
};

byte smiley[8] = {
  0b00000,
  0b00000,
  0b01010,
  0b00000,
  0b00000,
  0b10001,
  0b01110,
  0b00000
};

byte frownie[8] = {
  0b00000,
  0b00000,
  0b01010,
  0b00000,
  0b00000,
  0b00000,
  0b01110,
  0b10001
};

byte armsDown[8] = {
  0b00100,
  0b01010,
  0b00100,
  0b00100,
  0b01110,
  0b10101,
  0b00100,
  0b01010
};

byte armsUp[8] = {
  0b00100,
  0b01010,
  0b00100,
  0b10101,
  0b01110,
  0b00100,
  0b00100,
  0b01010
};

	// ------------------------------------------ setup ------------------------
void setup() {

  lcd.begin(16, 2);
  lcd.setContrast(40);

  lcd.createChar(0, heart);
	lcd.createChar(1, smiley);

  lcd.createChar(2, frownie);

  lcd.createChar(3, armsDown);
  lcd.createChar(4, armsUp);

  lcd.setCursor(0, 0);

  lcd.print("I");
  lcd.write(0);
  lcd.print(" ESP8266 NonOs ");
  lcd.write(1);

}

	// ---------------------------------------------- loop --------------------------
void loop() {

  int sensorReading = analogRead(A0);

  int delayTime = map(sensorReading, 0, 1023, 200, 1000);

  lcd.setCursor(4, 1);
		// draw the little man, arms down:
  lcd.write(3); lcd.write(32); lcd.write(1);
  delay(300);
  lcd.setCursor(10, 1);
		// draw him arms up:
  lcd.write(4); lcd.write(32); lcd.write(1);
  delay(300);

}
// ---------------------------------- end --------------------------------------

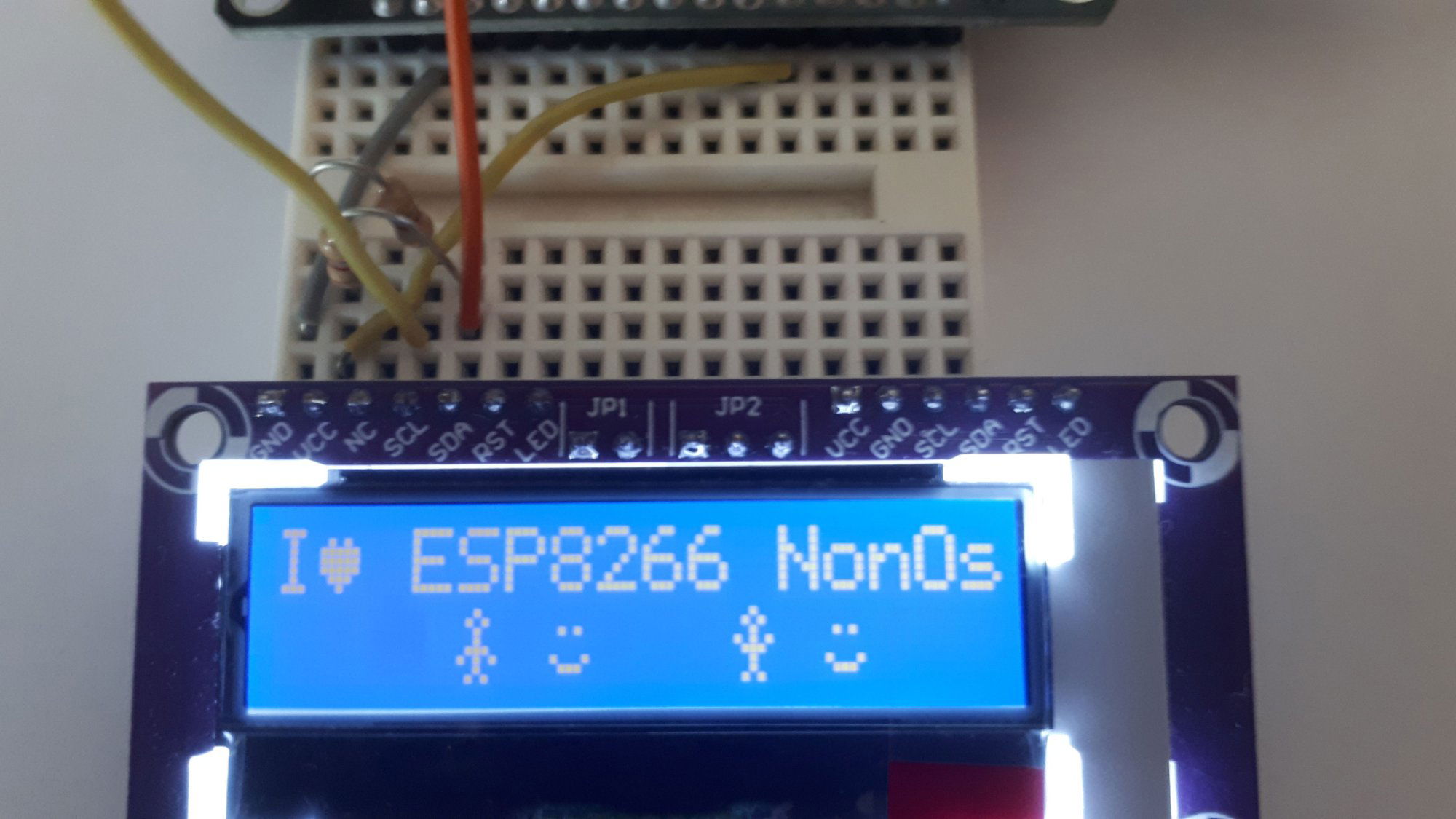

- wygląd ekranu z LCD.

Edytowano Luty 3, 2022 przez 99teki
