HAL_Delay w while psuje wyniki z GPS

DeadGeneratio · Lipiec 8, 2024

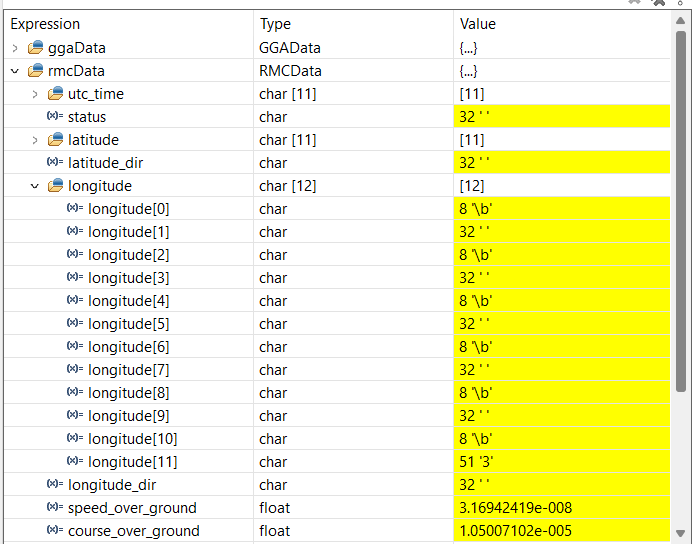

Dobry wieczór, ciekawy i irytujący problem - wstawienie dowolnej długości delay do pętli while psuje odczyty z gps-a. Dowiedziałem się o tym gdy podłączyłem RTC i zacząłem z nim pracować, wszystkie wyniki z płytki GPS nagle stały się losowe i bezwartościowe. Czy ktoś podsunie pomysł o co może chodzić? To przykład dla kodu z pustą pętlą while:

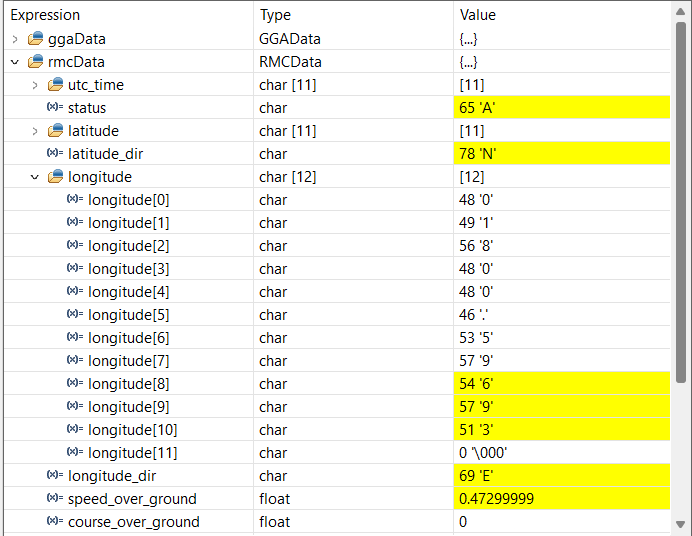

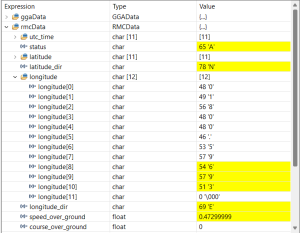

A to przykład dla kodu gdzie wpętli while jest tylko i wyłącznie HAL_Delay(200);

I dodatkowe pytanie - odpowiedziałem do swojego postu odnośnie FFT na F407 i widzę, że post nie pojawił się na szczycie, nie widać nawet dodatkowej odpowiedzi. Coś zostało zmienione na forum?

/* USER CODE BEGIN Header */
/**
 ******************************************************************************
 * @file           : main.c
 * @brief          : Main program body
 ******************************************************************************
 * @attention
 *
 * Copyright (c) 2024 STMicroelectronics.
 * All rights reserved.
 *
 * This software is licensed under terms that can be found in the LICENSE file
 * in the root directory of this software component.
 * If no LICENSE file comes with this software, it is provided AS-IS.
 *
 ******************************************************************************
 */
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"

/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
#include "string.h"
#include "stdio.h"
/* USER CODE END Includes */

/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */

/* USER CODE END PTD */

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */

#define GPS_BUFFER_SIZE 1024

#define RTC_ADDRESS 0xD0
/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/
I2C_HandleTypeDef hi2c1;

UART_HandleTypeDef huart1;

/* USER CODE BEGIN PV */

/* RTC SARTS HERE ------------------------------------------------------- */

typedef struct {
	uint8_t seconds;
	uint8_t minutes;
	uint8_t hour;
	uint8_t dayofweek;
	uint8_t dayofmonth;
	uint8_t month;
	uint8_t year;
} TIME;

TIME time;

/* RTC ENDS HERE ---------------------------------------------------------*/

/* GPS STARTS HERE ------------------------------------------------------ */

char rxBuffer[GPS_BUFFER_SIZE];

char nmeaSentence[82]; // Maksymalna długość zdania NMEA to 82 znaki

uint16_t bufferIndex = 0;

typedef struct {
	char utc_time[11];
	char latitude[11];
	char latitude_dir;
	char longitude[12];
	char longitude_dir;
	int fix_quality;
	int num_satellites;
	float hdop;
	float altitude;
	char altitude_units;
	float geoid_height;
	char geoid_height_units;
} GGAData;

typedef struct {
	char utc_time[11];
	char status;
	char latitude[11];
	char latitude_dir;
	char longitude[12];
	char longitude_dir;
	float speed_over_ground;
	float course_over_ground;
	char date[7];
	float magnetic_variation;
	char magnetic_variation_dir;
	char mode;
} RMCData;

typedef struct {
	int num_messages;
	int message_num;
	int num_sv;

	struct {
		int prn;
		int elevation;
		int azimuth;
		int snr;
	} satellites[4];
} GSVData;

typedef struct {
	char mode1;
	int mode2;
	int sat_used[12];
	float pdop;
	float hdop;
	float vdop;
} GSAData;

typedef struct {
	char utc_time[11];
	char latitude[11];
	char latitude_dir;
	char longitude[12];
	char longitude_dir;
	char status;
	char mode;
} GLLData;

typedef struct {
	float true_track;
	char true_track_sym;
	float mag_track;
	char mag_track_sym;
	float ground_speed_knots;
	char ground_speed_knots_sym;
	float ground_speed_kmph;
	char ground_speed_kmph_sym;
} VTGData;

typedef struct {
	int message_number;
	int total_messages;
	int message_type;
	char text[61];
} TXTData;

GGAData ggaData;
RMCData rmcData;
GSVData gsvData;
GSAData gsaData;
GLLData gllData;
VTGData vtgData;
TXTData txtData;

/* GPS ENDS HERE ------------------------------------------------------------*/

/* USER CODE END PV */

/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
static void MX_GPIO_Init(void);
static void MX_USART1_UART_Init(void);
static void MX_I2C1_Init(void);
/* USER CODE BEGIN PFP */
void processNMEASentence(char *sentence);
void processGGA(char *sentence);
void processRMC(char *sentence);
void processGSV(char *sentence);
void processGSA(char *sentence);
void processGLL(char *sentence);
void processVTG(char *sentence);
void processTXT(char *sentence);
uint8_t decToBcd(int val);
int bcdToDec(uint8_t val);
void Set_Time(uint8_t sec, uint8_t min, uint8_t hour, uint8_t dow, uint8_t dom,
		uint8_t month, uint8_t year);
void Get_Time(void);

/* USER CODE END PFP */

/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */
uint8_t decToBcd(int val) {
	return (uint8_t) ((val / 10 * 16) + (val % 10));
}
int bcdToDec(uint8_t val) {
	return (int) ((val / 16 * 10) + (val % 16));
}

void Set_Time(uint8_t sec, uint8_t min, uint8_t hour, uint8_t dow, uint8_t dom,
		uint8_t month, uint8_t year) {
	uint8_t set_time[7];
	set_time[0] = decToBcd(sec);
	set_time[1] = decToBcd(min);
	set_time[2] = decToBcd(hour);
	set_time[3] = decToBcd(dow);
	set_time[4] = decToBcd(dom);
	set_time[5] = decToBcd(month);
	set_time[6] = decToBcd(year);

	HAL_I2C_Mem_Write(&hi2c1, RTC_ADDRESS, 0x00, 1, set_time, 7, 1000);
}

void Get_Time(void) {
	uint8_t get_time[7];
	HAL_I2C_Mem_Read(&hi2c1, RTC_ADDRESS, 0x00, 1, get_time, 7, 1000);
	time.seconds = bcdToDec(get_time[0]);
	time.minutes = bcdToDec(get_time[1]);
	time.hour = bcdToDec(get_time[2]);
	time.dayofweek = bcdToDec(get_time[3]);
	time.dayofmonth = bcdToDec(get_time[4]);
	time.month = bcdToDec(get_time[5]);
	time.year = bcdToDec(get_time[6]);
}

void processNMEASentence(char *sentence) {
	if (strncmp(sentence, "$GPGGA", 6) == 0) {
		processGGA(sentence);
	} else if (strncmp(sentence, "$GPRMC", 6) == 0) {
		processRMC(sentence);
	} else if (strncmp(sentence, "$GPGSV", 6) == 0) {
		processGSV(sentence);
	} else if (strncmp(sentence, "$GPGSA", 6) == 0) {
		processGSA(sentence);
	} else if (strncmp(sentence, "$GPGLL", 6) == 0) {
		processGLL(sentence);
	} else if (strncmp(sentence, "$GPVTG", 6) == 0) {
		processVTG(sentence);
	} else if (strncmp(sentence, "$GPTXT", 6) == 0) {
		processTXT(sentence);
	}
}

void processGGA(char *sentence) {
	// Przetwarzanie $GPGGA
	sscanf(sentence,
			"$GPGGA,%10[^,],%10[^,],%c,%11[^,],%c,%d,%d,%f,%f,%c,%f,%c",
			ggaData.utc_time, ggaData.latitude, &ggaData.latitude_dir,
			ggaData.longitude, &ggaData.longitude_dir, &ggaData.fix_quality,
			&ggaData.num_satellites, &ggaData.hdop, &ggaData.altitude,
			&ggaData.altitude_units, &ggaData.geoid_height,
			&ggaData.geoid_height_units);
}

void processRMC(char *sentence) {
	// Przetwarzanie $GPRMC
	sscanf(sentence,
			"$GPRMC,%10[^,],%c,%10[^,],%c,%11[^,],%c,%f,%f,%6[^,],%f,%c,%c",
			rmcData.utc_time, &rmcData.status, rmcData.latitude,
			&rmcData.latitude_dir, rmcData.longitude, &rmcData.longitude_dir,
			&rmcData.speed_over_ground, &rmcData.course_over_ground,
			rmcData.date, &rmcData.magnetic_variation,
			&rmcData.magnetic_variation_dir, &rmcData.mode);
}

void processGSV(char *sentence) {
	// Przetwarzanie $GPGSV
	int num_messages, message_num, num_sv;
	int prn[4] = { 0 }, elevation[4] = { 0 }, azimuth[4] = { 0 },
			snr[4] = { 0 };

	// Parse the sentence
	sscanf(sentence, "$GPGSV,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d",
			&num_messages, &message_num, &num_sv, &prn[0], &elevation[0],
			&azimuth[0], &snr[0], &prn[1], &elevation[1], &azimuth[1], &snr[1],
			&prn[2], &elevation[2], &azimuth[2], &snr[2], &prn[3],
			&elevation[3], &azimuth[3], &snr[3]);

	// Store the parsed data in the global structure
	gsvData.num_messages = num_messages;
	gsvData.message_num = message_num;
	gsvData.num_sv = num_sv;

	for (int i = 0; i < 4; i++) {
		gsvData.satellites[i].prn = prn[i];
		gsvData.satellites[i].elevation = elevation[i];
		gsvData.satellites[i].azimuth = azimuth[i];
		gsvData.satellites[i].snr = snr[i];
	}
}

void processGSA(char *sentence) {
	// Przetwarzanie $GPGSA
	sscanf(sentence, "$GPGSA,%c,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%f,%f,%f",
			&gsaData.mode1, &gsaData.mode2, &gsaData.sat_used[0],
			&gsaData.sat_used[1], &gsaData.sat_used[2], &gsaData.sat_used[3],
			&gsaData.sat_used[4], &gsaData.sat_used[5], &gsaData.sat_used[6],
			&gsaData.sat_used[7], &gsaData.sat_used[8], &gsaData.sat_used[9],
			&gsaData.sat_used[10], &gsaData.sat_used[11], &gsaData.pdop,
			&gsaData.hdop, &gsaData.vdop);
}

void processGLL(char *sentence) {
	// Przetwarzanie $GPGLL
	sscanf(sentence, "$GPGLL,%10[^,],%c,%11[^,],%c,%10[^,],%c,%c",
			gllData.latitude, &gllData.latitude_dir, gllData.longitude,
			&gllData.longitude_dir, gllData.utc_time, &gllData.status,
			&gllData.mode);
}

void processVTG(char *sentence) {
	// Przetwarzanie $GPVTG
	sscanf(sentence, "$GPVTG,%f,%c,%f,%c,%f,%c,%f,%c", &vtgData.true_track,
			&vtgData.true_track_sym, &vtgData.mag_track, &vtgData.mag_track_sym,
			&vtgData.ground_speed_knots, &vtgData.ground_speed_knots_sym,
			&vtgData.ground_speed_kmph, &vtgData.ground_speed_kmph_sym);
}

void processTXT(char *sentence) {
	// Przetwarzanie $GPTXT
	sscanf(sentence, "$GPTXT,%d,%d,%d,%60[^\n]", &txtData.message_number,
			&txtData.total_messages, &txtData.message_type, txtData.text);
}
/* USER CODE END 0 */

/**
  * @brief  The application entry point.
  * @retval int
  */
int main(void)
{
  /* USER CODE BEGIN 1 */

  /* USER CODE END 1 */

  /* MCU Configuration--------------------------------------------------------*/

  /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  HAL_Init();

  /* USER CODE BEGIN Init */

  /* USER CODE END Init */

  /* Configure the system clock */
  SystemClock_Config();

  /* USER CODE BEGIN SysInit */

  /* USER CODE END SysInit */

  /* Initialize all configured peripherals */
  MX_GPIO_Init();
  MX_USART1_UART_Init();
  MX_I2C1_Init();
  /* USER CODE BEGIN 2 */
	HAL_UART_Receive_IT(&huart1, (uint8_t*) rxBuffer, 1);

  /* USER CODE END 2 */

  /* Infinite loop */
  /* USER CODE BEGIN WHILE */
	while (1) {
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
	}
  /* USER CODE END 3 */
}

/**
  * @brief System Clock Configuration
  * @retval None
  */
void SystemClock_Config(void)
{
  RCC_OscInitTypeDef RCC_OscInitStruct = {0};
  RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};

  /** Configure the main internal regulator output voltage
  */
  __HAL_RCC_PWR_CLK_ENABLE();
  __HAL_PWR_VOLTAGESCALING_CONFIG(PWR_REGULATOR_VOLTAGE_SCALE1);

  /** Initializes the RCC Oscillators according to the specified parameters
  * in the RCC_OscInitTypeDef structure.
  */
  RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSI;
  RCC_OscInitStruct.HSIState = RCC_HSI_ON;
  RCC_OscInitStruct.HSICalibrationValue = RCC_HSICALIBRATION_DEFAULT;
  RCC_OscInitStruct.PLL.PLLState = RCC_PLL_NONE;
  if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
  {
    Error_Handler();
  }

  /** Initializes the CPU, AHB and APB buses clocks
  */
  RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
                              |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
  RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_HSI;
  RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
  RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV1;
  RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;

  if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_0) != HAL_OK)
  {
    Error_Handler();
  }
}

/**
  * @brief I2C1 Initialization Function
  * @param None
  * @retval None
  */
static void MX_I2C1_Init(void)
{

  /* USER CODE BEGIN I2C1_Init 0 */

  /* USER CODE END I2C1_Init 0 */

  /* USER CODE BEGIN I2C1_Init 1 */

  /* USER CODE END I2C1_Init 1 */
  hi2c1.Instance = I2C1;
  hi2c1.Init.ClockSpeed = 100000;
  hi2c1.Init.DutyCycle = I2C_DUTYCYCLE_2;
  hi2c1.Init.OwnAddress1 = 0;
  hi2c1.Init.AddressingMode = I2C_ADDRESSINGMODE_7BIT;
  hi2c1.Init.DualAddressMode = I2C_DUALADDRESS_DISABLE;
  hi2c1.Init.OwnAddress2 = 0;
  hi2c1.Init.GeneralCallMode = I2C_GENERALCALL_DISABLE;
  hi2c1.Init.NoStretchMode = I2C_NOSTRETCH_DISABLE;
  if (HAL_I2C_Init(&hi2c1) != HAL_OK)
  {
    Error_Handler();
  }
  /* USER CODE BEGIN I2C1_Init 2 */

  /* USER CODE END I2C1_Init 2 */

}

/**
  * @brief USART1 Initialization Function
  * @param None
  * @retval None
  */
static void MX_USART1_UART_Init(void)
{

  /* USER CODE BEGIN USART1_Init 0 */

  /* USER CODE END USART1_Init 0 */

  /* USER CODE BEGIN USART1_Init 1 */

  /* USER CODE END USART1_Init 1 */
  huart1.Instance = USART1;
  huart1.Init.BaudRate = 9600;
  huart1.Init.WordLength = UART_WORDLENGTH_8B;
  huart1.Init.StopBits = UART_STOPBITS_1;
  huart1.Init.Parity = UART_PARITY_NONE;
  huart1.Init.Mode = UART_MODE_TX_RX;
  huart1.Init.HwFlowCtl = UART_HWCONTROL_NONE;
  huart1.Init.OverSampling = UART_OVERSAMPLING_16;
  if (HAL_UART_Init(&huart1) != HAL_OK)
  {
    Error_Handler();
  }
  /* USER CODE BEGIN USART1_Init 2 */

  /* USER CODE END USART1_Init 2 */

}

/**
  * @brief GPIO Initialization Function
  * @param None
  * @retval None
  */
static void MX_GPIO_Init(void)
{
/* USER CODE BEGIN MX_GPIO_Init_1 */
/* USER CODE END MX_GPIO_Init_1 */

  /* GPIO Ports Clock Enable */
  __HAL_RCC_GPIOH_CLK_ENABLE();
  __HAL_RCC_GPIOA_CLK_ENABLE();
  __HAL_RCC_GPIOB_CLK_ENABLE();

/* USER CODE BEGIN MX_GPIO_Init_2 */
/* USER CODE END MX_GPIO_Init_2 */
}

/* USER CODE BEGIN 4 */
void HAL_UART_RxCpltCallback(UART_HandleTypeDef *huart) {
	if (huart->Instance == USART1) {
		char receivedChar;
		HAL_UART_Receive_IT(&huart1, (uint8_t*) &receivedChar, 1);
		if (receivedChar == '$') {
			bufferIndex = 0;
		}
		if (bufferIndex < GPS_BUFFER_SIZE - 1) {
			rxBuffer[bufferIndex++] = receivedChar;
			rxBuffer[bufferIndex] = '\0'; // Null-terminate string

			if (receivedChar == '\n' && bufferIndex > 1
					&& rxBuffer[bufferIndex - 2] == '\r') {
				strncpy(nmeaSentence, rxBuffer, bufferIndex);
				nmeaSentence[bufferIndex] = '\0';
				processNMEASentence(nmeaSentence);
				bufferIndex = 0;
			}
		} else {
			bufferIndex = 0;
		}
	}
}



/* USER CODE END 4 */

/**
  * @brief  This function is executed in case of error occurrence.
  * @retval None
  */
void Error_Handler(void)
{
  /* USER CODE BEGIN Error_Handler_Debug */
	/* User can add his own implementation to report the HAL error return state */
	__disable_irq();
	while (1) {
	}
  /* USER CODE END Error_Handler_Debug */
}

#ifdef  USE_FULL_ASSERT
/**
  * @brief  Reports the name of the source file and the source line number
  *         where the assert_param error has occurred.
  * @param  file: pointer to the source file name
  * @param  line: assert_param error line source number
  * @retval None
  */
void assert_failed(uint8_t *file, uint32_t line)
{
  /* USER CODE BEGIN 6 */
  /* User can add his own implementation to report the file name and line number,
     ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
  /* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */

GPS.zip

Edytowano Lipiec 8, 2024 przez DeadGeneratio

Gieneq · Lipiec 9, 2024

@DeadGeneratio odczytujesz to po UARCIE w przerwaniu po 1 znaku?

	HAL_UART_Receive_IT(&huart1, (uint8_t*) rxBuffer, 1);

Dodaj obsługę błędu od UARTu. Spróbuj też innej metody niż odczytywanie po 1 znaku. Np UARTex ma funkcję z odczytyweaniem do sygnału idle z DMA dla nieznanego rozmiaru danych.

Sprawdź priorytety, 0 to najwyższy. Sprawdź czy nie kłuci się z timerem od delaya.

I nie używaj delay 😄

DeadGeneratio · Lipiec 10, 2024

@Gineq poprawiłem kod na odbiór przez DMA, wszystko śmiga ładnie. No można powiedzieć, że prawie ładnie bo moduł ma rozrzut dokładności o około 100m, ale obstawiam, że to wina odbierania sygnału w mieszkaniu. Dodałem sobie także RTC oraz aktualizowanie RTC względem czasu GPS. Obecnie będę się męczył nad implementacją wyświetlacza e-ink.

/* USER CODE BEGIN Header */
/**
 ******************************************************************************
 * @file           : main.c
 * @brief          : Main program body
 ******************************************************************************
 * @attention
 *
 * Copyright (c) 2024 STMicroelectronics.
 * All rights reserved.
 *
 * This software is licensed under terms that can be found in the LICENSE file
 * in the root directory of this software component.
 * If no LICENSE file comes with this software, it is provided AS-IS.
 *
 ******************************************************************************
 */
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"

/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
#include "string.h"
#include "stdio.h"
#include "DS3231.h"
#include "stdlib.h"

/* USER CODE END Includes */

/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */

/* USER CODE END PTD */

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */

/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/
I2C_HandleTypeDef hi2c1;
DMA_HandleTypeDef hdma_i2c1_rx;
DMA_HandleTypeDef hdma_i2c1_tx;

SPI_HandleTypeDef hspi1;

TIM_HandleTypeDef htim14;

UART_HandleTypeDef huart1;
DMA_HandleTypeDef hdma_usart1_rx;

/* USER CODE BEGIN PV */

/* RTC STARTS HERE ------------------------------------------------------------------ */

/* RTC ENDS HERE -------------------------------------------------------------------- */

RTCDateTime RTC_time;

/* GPS STARTS HERE ------------------------------------------------------------------ */

#define GPS_BUFFER_SIZE 512
#define NMEA_SIZE 86

char rxBuffer[GPS_BUFFER_SIZE];
char GGA_sentence[NMEA_SIZE]; // Global Positioning System Fix Data
char RMC_sentence[NMEA_SIZE]; // Recommended Minimum Navigation Information
char GSV_sentence[NMEA_SIZE]; // GNSS Satelites in View
char GSA_sentence[NMEA_SIZE]; // GNSS DOP and Active Satellites
char GLL_sentence[NMEA_SIZE]; // Geographic Position - Latitude/Longitude
char VTG_sentence[NMEA_SIZE]; // Track mode good and Ground speed
char TXT_sentence[NMEA_SIZE]; // Inne dane

typedef struct {
	char utc_time[11];
	char latitude[11];
	char latitude_dir;
	char longitude[12];
	char longitude_dir;
	int fix_quality;
	int num_satellites;
	float hdop;
	float altitude;
	char altitude_units;
	float geoid_height;
	char geoid_height_units;
} GGAData;

typedef struct {
	char utc_time[11];
	char status;
	char latitude[11];
	char latitude_dir;
	char longitude[12];
	char longitude_dir;
	float speed_over_ground;
	float course_over_ground;
	char date[7];
	float magnetic_variation;
	char magnetic_variation_dir;
	char mode;
} RMCData;

typedef struct {
	int num_messages;
	int message_num;
	int num_sv;

	struct {
		int prn;
		int elevation;
		int azimuth;
		int snr;
	} satellites[4];
} GSVData;

typedef struct {
	char mode1;
	int mode2;
	int sat_used[12];
	float pdop;
	float hdop;
	float vdop;
} GSAData;

typedef struct {
	char utc_time[11];
	char latitude[11];
	char latitude_dir;
	char longitude[12];
	char longitude_dir;
	char status;
	char mode;
} GLLData;

typedef struct {
	float true_track;
	char true_track_sym;
	float mag_track;
	char mag_track_sym;
	float ground_speed_knots;
	char ground_speed_knots_sym;
	float ground_speed_kmph;
	char ground_speed_kmph_sym;
} VTGData;

typedef struct {
	int message_number;
	int total_messages;
	int message_type;
	char text[61];
} TXTData;

GGAData ggaData;
RMCData rmcData;
GSVData gsvData;
GSAData gsaData;
GLLData gllData;
VTGData vtgData;
TXTData txtData;

/* GPS ENDS HERE ------------------------------------------------------------------------ */

/* USER CODE END PV */

/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
static void MX_GPIO_Init(void);
static void MX_DMA_Init(void);
static void MX_USART1_UART_Init(void);
static void MX_I2C1_Init(void);
static void MX_TIM14_Init(void);
static void MX_SPI1_Init(void);
/* USER CODE BEGIN PFP */
void processGGA(char *sentence);
void processRMC(char *sentence);
void processGSV(char *sentence);
void processGSA(char *sentence);
void processGLL(char *sentence);
void processVTG(char *sentence);
void processTXT(char *sentence);
/* USER CODE END PFP */

/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */
void processGGA(char *sentence) {
	sscanf(sentence,
			"$GPGGA,%10[^,],%10[^,],%c,%11[^,],%c,%d,%d,%f,%f,%c,%f,%c",
			ggaData.utc_time, ggaData.latitude, &ggaData.latitude_dir,
			ggaData.longitude, &ggaData.longitude_dir, &ggaData.fix_quality,
			&ggaData.num_satellites, &ggaData.hdop, &ggaData.altitude,
			&ggaData.altitude_units, &ggaData.geoid_height,
			&ggaData.geoid_height_units);
}

void processRMC(char *sentence) {
	sscanf(sentence,
			"$GPRMC,%10[^,],%c,%10[^,],%c,%11[^,],%c,%f,%f,%6[^,],%f,%c,%c",
			rmcData.utc_time, &rmcData.status, rmcData.latitude,
			&rmcData.latitude_dir, rmcData.longitude, &rmcData.longitude_dir,
			&rmcData.speed_over_ground, &rmcData.course_over_ground,
			rmcData.date, &rmcData.magnetic_variation,
			&rmcData.magnetic_variation_dir, &rmcData.mode);
}

void processGSV(char *sentence) {
	int num_messages, message_num, num_sv;
	int prn[4] = { 0 }, elevation[4] = { 0 }, azimuth[4] = { 0 },
			snr[4] = { 0 };

	sscanf(sentence, "$GPGSV,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d",
			&num_messages, &message_num, &num_sv, &prn[0], &elevation[0],
			&azimuth[0], &snr[0], &prn[1], &elevation[1], &azimuth[1], &snr[1],
			&prn[2], &elevation[2], &azimuth[2], &snr[2], &prn[3],
			&elevation[3], &azimuth[3], &snr[3]);

	gsvData.num_messages = num_messages;
	gsvData.message_num = message_num;
	gsvData.num_sv = num_sv;

	for (int i = 0; i < 4; i++) {
		gsvData.satellites[i].prn = prn[i];
		gsvData.satellites[i].elevation = elevation[i];
		gsvData.satellites[i].azimuth = azimuth[i];
		gsvData.satellites[i].snr = snr[i];
	}
}

void processGSA(char *sentence) {
	sscanf(sentence, "$GPGSA,%c,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%d,%f,%f,%f",
			&gsaData.mode1, &gsaData.mode2, &gsaData.sat_used[0],
			&gsaData.sat_used[1], &gsaData.sat_used[2], &gsaData.sat_used[3],
			&gsaData.sat_used[4], &gsaData.sat_used[5], &gsaData.sat_used[6],
			&gsaData.sat_used[7], &gsaData.sat_used[8], &gsaData.sat_used[9],
			&gsaData.sat_used[10], &gsaData.sat_used[11], &gsaData.pdop,
			&gsaData.hdop, &gsaData.vdop);
}

void processGLL(char *sentence) {
	sscanf(sentence, "$GPGLL,%10[^,],%c,%11[^,],%c,%10[^,],%c,%c",
			gllData.latitude, &gllData.latitude_dir, gllData.longitude,
			&gllData.longitude_dir, gllData.utc_time, &gllData.status,
			&gllData.mode);
}

void processVTG(char *sentence) {
	sscanf(sentence, "$GPVTG,%f,%c,%f,%c,%f,%c,%f,%c", &vtgData.true_track,
			&vtgData.true_track_sym, &vtgData.mag_track, &vtgData.mag_track_sym,
			&vtgData.ground_speed_knots, &vtgData.ground_speed_knots_sym,
			&vtgData.ground_speed_kmph, &vtgData.ground_speed_kmph_sym);
}

void processTXT(char *sentence) {
	sscanf(sentence, "$GPTXT,%d,%d,%d,%60[^\n]", &txtData.message_number,
			&txtData.total_messages, &txtData.message_type, txtData.text);
}
/* USER CODE END 0 */

/**
  * @brief  The application entry point.
  * @retval int
  */
int main(void)
{
  /* USER CODE BEGIN 1 */

  /* USER CODE END 1 */

  /* MCU Configuration--------------------------------------------------------*/

  /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  HAL_Init();

  /* USER CODE BEGIN Init */

  /* USER CODE END Init */

  /* Configure the system clock */
  SystemClock_Config();

  /* USER CODE BEGIN SysInit */

  /* USER CODE END SysInit */

  /* Initialize all configured peripherals */
  MX_GPIO_Init();
  MX_DMA_Init();
  MX_USART1_UART_Init();
  MX_I2C1_Init();
  MX_TIM14_Init();
  MX_SPI1_Init();
  /* USER CODE BEGIN 2 */
	HAL_UART_Receive_DMA(&huart1, (uint8_t*) rxBuffer, GPS_BUFFER_SIZE);
	DS3231_Init(&hi2c1);

  /* USER CODE END 2 */

  /* Infinite loop */
  /* USER CODE BEGIN WHILE */
	while (1) {
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
	}
  /* USER CODE END 3 */
}

/**
  * @brief System Clock Configuration
  * @retval None
  */
void SystemClock_Config(void)
{
  RCC_OscInitTypeDef RCC_OscInitStruct = {0};
  RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};

  /** Configure the main internal regulator output voltage
  */
  __HAL_RCC_PWR_CLK_ENABLE();
  __HAL_PWR_VOLTAGESCALING_CONFIG(PWR_REGULATOR_VOLTAGE_SCALE1);

  /** Initializes the RCC Oscillators according to the specified parameters
  * in the RCC_OscInitTypeDef structure.
  */
  RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSI;
  RCC_OscInitStruct.HSIState = RCC_HSI_ON;
  RCC_OscInitStruct.HSICalibrationValue = RCC_HSICALIBRATION_DEFAULT;
  RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
  RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSI;
  RCC_OscInitStruct.PLL.PLLM = 8;
  RCC_OscInitStruct.PLL.PLLN = 64;
  RCC_OscInitStruct.PLL.PLLP = RCC_PLLP_DIV2;
  RCC_OscInitStruct.PLL.PLLQ = 2;
  RCC_OscInitStruct.PLL.PLLR = 2;
  if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
  {
    Error_Handler();
  }

  /** Initializes the CPU, AHB and APB buses clocks
  */
  RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
                              |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
  RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
  RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV2;
  RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV1;
  RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;

  if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_1) != HAL_OK)
  {
    Error_Handler();
  }
}

/**
  * @brief I2C1 Initialization Function
  * @param None
  * @retval None
  */
static void MX_I2C1_Init(void)
{

  /* USER CODE BEGIN I2C1_Init 0 */

  /* USER CODE END I2C1_Init 0 */

  /* USER CODE BEGIN I2C1_Init 1 */

  /* USER CODE END I2C1_Init 1 */
  hi2c1.Instance = I2C1;
  hi2c1.Init.ClockSpeed = 400000;
  hi2c1.Init.DutyCycle = I2C_DUTYCYCLE_2;
  hi2c1.Init.OwnAddress1 = 0;
  hi2c1.Init.AddressingMode = I2C_ADDRESSINGMODE_7BIT;
  hi2c1.Init.DualAddressMode = I2C_DUALADDRESS_DISABLE;
  hi2c1.Init.OwnAddress2 = 0;
  hi2c1.Init.GeneralCallMode = I2C_GENERALCALL_DISABLE;
  hi2c1.Init.NoStretchMode = I2C_NOSTRETCH_DISABLE;
  if (HAL_I2C_Init(&hi2c1) != HAL_OK)
  {
    Error_Handler();
  }
  /* USER CODE BEGIN I2C1_Init 2 */

  /* USER CODE END I2C1_Init 2 */

}

/**
  * @brief SPI1 Initialization Function
  * @param None
  * @retval None
  */
static void MX_SPI1_Init(void)
{

  /* USER CODE BEGIN SPI1_Init 0 */

  /* USER CODE END SPI1_Init 0 */

  /* USER CODE BEGIN SPI1_Init 1 */

  /* USER CODE END SPI1_Init 1 */
  /* SPI1 parameter configuration*/
  hspi1.Instance = SPI1;
  hspi1.Init.Mode = SPI_MODE_MASTER;
  hspi1.Init.Direction = SPI_DIRECTION_1LINE;
  hspi1.Init.DataSize = SPI_DATASIZE_8BIT;
  hspi1.Init.CLKPolarity = SPI_POLARITY_LOW;
  hspi1.Init.CLKPhase = SPI_PHASE_1EDGE;
  hspi1.Init.NSS = SPI_NSS_SOFT;
  hspi1.Init.BaudRatePrescaler = SPI_BAUDRATEPRESCALER_16;
  hspi1.Init.FirstBit = SPI_FIRSTBIT_MSB;
  hspi1.Init.TIMode = SPI_TIMODE_DISABLE;
  hspi1.Init.CRCCalculation = SPI_CRCCALCULATION_DISABLE;
  hspi1.Init.CRCPolynomial = 10;
  if (HAL_SPI_Init(&hspi1) != HAL_OK)
  {
    Error_Handler();
  }
  /* USER CODE BEGIN SPI1_Init 2 */

  /* USER CODE END SPI1_Init 2 */

}

/**
  * @brief TIM14 Initialization Function
  * @param None
  * @retval None
  */
static void MX_TIM14_Init(void)
{

  /* USER CODE BEGIN TIM14_Init 0 */

  /* USER CODE END TIM14_Init 0 */

  /* USER CODE BEGIN TIM14_Init 1 */

  /* USER CODE END TIM14_Init 1 */
  htim14.Instance = TIM14;
  htim14.Init.Prescaler = 32000-1;
  htim14.Init.CounterMode = TIM_COUNTERMODE_UP;
  htim14.Init.Period = 60000-1;
  htim14.Init.ClockDivision = TIM_CLOCKDIVISION_DIV1;
  htim14.Init.AutoReloadPreload = TIM_AUTORELOAD_PRELOAD_ENABLE;
  if (HAL_TIM_Base_Init(&htim14) != HAL_OK)
  {
    Error_Handler();
  }
  /* USER CODE BEGIN TIM14_Init 2 */

  /* USER CODE END TIM14_Init 2 */

}

/**
  * @brief USART1 Initialization Function
  * @param None
  * @retval None
  */
static void MX_USART1_UART_Init(void)
{

  /* USER CODE BEGIN USART1_Init 0 */

  /* USER CODE END USART1_Init 0 */

  /* USER CODE BEGIN USART1_Init 1 */

  /* USER CODE END USART1_Init 1 */
  huart1.Instance = USART1;
  huart1.Init.BaudRate = 9600;
  huart1.Init.WordLength = UART_WORDLENGTH_8B;
  huart1.Init.StopBits = UART_STOPBITS_1;
  huart1.Init.Parity = UART_PARITY_NONE;
  huart1.Init.Mode = UART_MODE_TX_RX;
  huart1.Init.HwFlowCtl = UART_HWCONTROL_NONE;
  huart1.Init.OverSampling = UART_OVERSAMPLING_16;
  if (HAL_UART_Init(&huart1) != HAL_OK)
  {
    Error_Handler();
  }
  /* USER CODE BEGIN USART1_Init 2 */

  /* USER CODE END USART1_Init 2 */

}

/**
  * Enable DMA controller clock
  */
static void MX_DMA_Init(void)
{

  /* DMA controller clock enable */
  __HAL_RCC_DMA2_CLK_ENABLE();
  __HAL_RCC_DMA1_CLK_ENABLE();

  /* DMA interrupt init */
  /* DMA1_Stream0_IRQn interrupt configuration */
  HAL_NVIC_SetPriority(DMA1_Stream0_IRQn, 0, 0);
  HAL_NVIC_EnableIRQ(DMA1_Stream0_IRQn);
  /* DMA1_Stream1_IRQn interrupt configuration */
  HAL_NVIC_SetPriority(DMA1_Stream1_IRQn, 0, 0);
  HAL_NVIC_EnableIRQ(DMA1_Stream1_IRQn);
  /* DMA2_Stream2_IRQn interrupt configuration */
  HAL_NVIC_SetPriority(DMA2_Stream2_IRQn, 0, 0);
  HAL_NVIC_EnableIRQ(DMA2_Stream2_IRQn);

}

/**
  * @brief GPIO Initialization Function
  * @param None
  * @retval None
  */
static void MX_GPIO_Init(void)
{
  GPIO_InitTypeDef GPIO_InitStruct = {0};
/* USER CODE BEGIN MX_GPIO_Init_1 */
/* USER CODE END MX_GPIO_Init_1 */

  /* GPIO Ports Clock Enable */
  __HAL_RCC_GPIOH_CLK_ENABLE();
  __HAL_RCC_GPIOA_CLK_ENABLE();
  __HAL_RCC_GPIOC_CLK_ENABLE();
  __HAL_RCC_GPIOB_CLK_ENABLE();

  /*Configure GPIO pin Output Level */
  HAL_GPIO_WritePin(GPIOA, EPAPER_RST_Pin|EPAPER_CS_Pin, GPIO_PIN_RESET);

  /*Configure GPIO pin Output Level */
  HAL_GPIO_WritePin(EPAPER_DC_GPIO_Port, EPAPER_DC_Pin, GPIO_PIN_RESET);

  /*Configure GPIO pin : EPAPER_BUSY_Pin */
  GPIO_InitStruct.Pin = EPAPER_BUSY_Pin;
  GPIO_InitStruct.Mode = GPIO_MODE_INPUT;
  GPIO_InitStruct.Pull = GPIO_NOPULL;
  HAL_GPIO_Init(EPAPER_BUSY_GPIO_Port, &GPIO_InitStruct);

  /*Configure GPIO pins : EPAPER_RST_Pin EPAPER_CS_Pin */
  GPIO_InitStruct.Pin = EPAPER_RST_Pin|EPAPER_CS_Pin;
  GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
  GPIO_InitStruct.Pull = GPIO_NOPULL;
  GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_LOW;
  HAL_GPIO_Init(GPIOA, &GPIO_InitStruct);

  /*Configure GPIO pin : EPAPER_DC_Pin */
  GPIO_InitStruct.Pin = EPAPER_DC_Pin;
  GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
  GPIO_InitStruct.Pull = GPIO_NOPULL;
  GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_LOW;
  HAL_GPIO_Init(EPAPER_DC_GPIO_Port, &GPIO_InitStruct);

  /*Configure GPIO pin : DS3231_INT_Pin */
  GPIO_InitStruct.Pin = DS3231_INT_Pin;
  GPIO_InitStruct.Mode = GPIO_MODE_IT_FALLING;
  GPIO_InitStruct.Pull = GPIO_NOPULL;
  HAL_GPIO_Init(DS3231_INT_GPIO_Port, &GPIO_InitStruct);

  /* EXTI interrupt init*/
  HAL_NVIC_SetPriority(EXTI9_5_IRQn, 0, 0);
  HAL_NVIC_EnableIRQ(EXTI9_5_IRQn);

/* USER CODE BEGIN MX_GPIO_Init_2 */
/* USER CODE END MX_GPIO_Init_2 */
}

/* USER CODE BEGIN 4 */
void HAL_UART_RxCpltCallback(UART_HandleTypeDef *huart) {
	if (huart->Instance == USART1) {
		char *start_ptr;

		start_ptr = strstr((char*) rxBuffer, "$GPGGA");
		if (start_ptr != NULL) {
			char *end_ptr = strchr(start_ptr, '\r');
			if (end_ptr != NULL) {
				size_t length = end_ptr - start_ptr;
				strncpy(GGA_sentence, start_ptr, length);
				memset(GGA_sentence + length, 0, NMEA_SIZE - length);
				processGGA(GGA_sentence);
			}
		}

		start_ptr = strstr((char*) rxBuffer, "$GPRMC");
		if (start_ptr != NULL) {
			char *end_ptr = strchr(start_ptr, '\r');
			if (end_ptr != NULL) {
				size_t length = end_ptr - start_ptr;
				strncpy(RMC_sentence, start_ptr, length);
				memset(RMC_sentence + length, 0, NMEA_SIZE - length);
				processRMC(RMC_sentence);
			}
		}

		start_ptr = strstr((char*) rxBuffer, "$GPGSV");
		if (start_ptr != NULL) {
			char *end_ptr = strchr(start_ptr, '\r');
			if (end_ptr != NULL) {
				size_t length = end_ptr - start_ptr;
				strncpy(GSV_sentence, start_ptr, length);
				memset(GSV_sentence + length, 0, NMEA_SIZE - length);
				processGSV(GSV_sentence);
			}
		}

		start_ptr = strstr((char*) rxBuffer, "$GPGSA");
		if (start_ptr != NULL) {
			char *end_ptr = strchr(start_ptr, '\r');
			if (end_ptr != NULL) {
				size_t length = end_ptr - start_ptr;
				strncpy(GSA_sentence, start_ptr, length);
				memset(GSA_sentence + length, 0, NMEA_SIZE - length);
				processGSA(GSA_sentence);
			}
		}

		start_ptr = strstr((char*) rxBuffer, "$GPGLL");
		if (start_ptr != NULL) {
			char *end_ptr = strchr(start_ptr, '\r');
			if (end_ptr != NULL) {
				size_t length = end_ptr - start_ptr;
				strncpy(GLL_sentence, start_ptr, length);
				memset(GLL_sentence + length, 0, NMEA_SIZE - length);
				processGLL(GLL_sentence);
			}
		}

		start_ptr = strstr((char*) rxBuffer, "$GPVTG");
		if (start_ptr != NULL) {
			char *end_ptr = strchr(start_ptr, '\r');
			if (end_ptr != NULL) {
				size_t length = end_ptr - start_ptr;
				strncpy(VTG_sentence, start_ptr, length);
				memset(VTG_sentence + length, 0, NMEA_SIZE - length);
				processVTG(VTG_sentence);
			}
		}

		start_ptr = strstr((char*) rxBuffer, "$GPTXT");
		if (start_ptr != NULL) {
			char *end_ptr = strchr(start_ptr, '\r');
			if (end_ptr != NULL) {
				size_t length = end_ptr - start_ptr;
				strncpy(TXT_sentence, start_ptr, length);
				memset(TXT_sentence + length, 0, NMEA_SIZE - length);
				processTXT(TXT_sentence);
			}
		}
		HAL_UART_Receive_DMA(&huart1, (uint8_t*) rxBuffer, GPS_BUFFER_SIZE);
	}
}

void HAL_GPIO_EXTI_Callback(uint16_t GPIO_Pin) {
	if (GPIO_Pin == DS3231_INT_Pin) {
		DS3231_ReceiveDateTimeDMA();
	}
}

void HAL_I2C_MemRxCpltCallback(I2C_HandleTypeDef *hi2c) {
	DS3231_CalculateDateTime(&RTC_time);
}

void HAL_TIM_PeriodElapsedCallback(TIM_HandleTypeDef *htim) {
	if (htim == &htim14) {
		if (ggaData.fix_quality > 0 && rmcData.status == 'A') {
			if (abs(RTC_time.Second - atoi(rmcData.utc_time + 4)) > 20
					|| RTC_time.Minute != atoi(rmcData.utc_time + 2)
					|| RTC_time.Hour != atoi(rmcData.utc_time)
					|| RTC_time.Day != atoi(rmcData.date + 0)
					|| RTC_time.Month != atoi(rmcData.date + 2)
					|| RTC_time.Year != 2000 + atoi(rmcData.date + 4)) {

				RTC_time.Second = atoi(rmcData.utc_time + 4);
				RTC_time.Minute = atoi(rmcData.utc_time + 2);
				RTC_time.Hour = atoi(rmcData.utc_time) + 2;
				RTC_time.Day = atoi(rmcData.date + 0);
				RTC_time.Month = atoi(rmcData.date + 2);
				RTC_time.Year = 2000 + atoi(rmcData.date + 4);

				DS3231_SetDateTime(&RTC_time);
			}
		}
	}
}

/* USER CODE END 4 */

/**
  * @brief  This function is executed in case of error occurrence.
  * @retval None
  */
void Error_Handler(void)
{
  /* USER CODE BEGIN Error_Handler_Debug */
	/* User can add his own implementation to report the HAL error return state */
	__disable_irq();
	while (1) {
	}
  /* USER CODE END Error_Handler_Debug */
}

#ifdef  USE_FULL_ASSERT
/**
  * @brief  Reports the name of the source file and the source line number
  *         where the assert_param error has occurred.
  * @param  file: pointer to the source file name
  * @param  line: assert_param error line source number
  * @retval None
  */
void assert_failed(uint8_t *file, uint32_t line)
{
  /* USER CODE BEGIN 6 */
  /* User can add his own implementation to report the file name and line number,
     ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
  /* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */

Gieneq · Lipiec 11, 2024

@DeadGeneratio fajnie 🙂 jak e-ink waveshare to masz do niech przykłady nawet dla STM. Ale wystarczy że napiszesz funkcje wysyłania komend i danych i znajdziesz pasujacy zestaw ustawień i bedzie ok.

Produkcja i montaż PCB - wybierz sprawdzone PCBWay!
   • Darmowe płytki dla studentów i projektów non-profit
   • Tylko 5$ za 10 prototypów PCB w 24 godziny
   • Usługa projektowania PCB na zlecenie
   • Montaż PCB od 30$ + bezpłatna dostawa i szablony
   • Darmowe narzędzie do podglądu plików Gerber
Zobacz również » Film z fabryki PCBWay

HAL_Delay w while psuje wyniki z GPS

Pomocna odpowiedź

DeadGeneratio

Link do komentarza

Share on other sites

Gieneq

Link do komentarza

Share on other sites

DeadGeneratio

Link do komentarza

Share on other sites

Gieneq

Link do komentarza

Share on other sites

Polecacz 101

Bądź aktywny - zaloguj się lub utwórz konto!

Utwórz konto w ~20 sekund!

Zaloguj się

Quizy

Najnowsze posty w innych tematach

Wytrawiarka do hobbystycznej produkcji płytek drukowanych

Oto nowy Bambu Lab H2D: drukarka 3D, grawer i ploter (4w1)

Multiwibrator astabilny

Lista projektów zgłoszonych do akcji: rabat za opis DIY 1 2

Kurs elektroniki II - #10 - tranzystory unipolarne (MOSFET) 1 2 3 4 11

Inne
